MCT - Round Transit | RGP - SFRBO
On land At sea Duct Seal

Used in high-risk maritime, offshore and land-based environments to minimize danger by preventing the spread of fire, water, gas, chemicals and other hazardous substances.

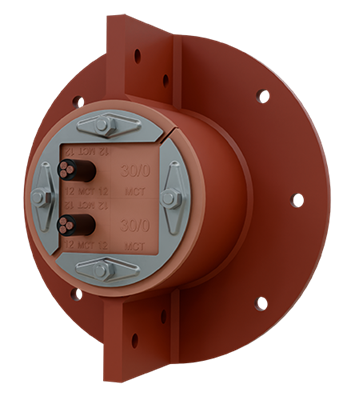

RGP - SFRBO

For bolting when cables are already in place

The RGP assembled in an open version sleeve for installation in holes where cables have already been pulled. The sleeve has predrilled holes which enables bolting where welding is prohibited or stress levels making it unsafe.

It is supplied as a kit, complete with drilled holes, bolts, nuts, washers and a gasket or sealing compound.

Also available as:
E-series Ex rated
Also available as:
E-series Ex rated

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.




PRESSURE-TIGHT INSTALLATION
All contact surfaces between the pipe and the RGP plug must be cleaned carefully prior to installation. Do not use any lubricant on these surfaces. All blocks must be lubricated carefully with MCT Brattberg lubricant. The penetration must not be subjected to pressure for at least 48 hours after installation. This is to allow the pressure to equalise throughout the penetration. It will take more time for the pressure to equalise at temperatures below 20°C.


Note: If the installation is subjected to pressure, all components must be replaced after removal and refitting.




How to install a MCT Brattberg RGP/RGPO, horizontal

Use bolts for this transit

This transit was designed for areas where welding is prohibited or welding induced stress levels making welding unacceptable. This transit is therefore to be fastened by bolts to ensure installation quality.

For more information visit Instructions and manuals

The RGP is available in 12 standard diameters 50, 70, 100, 125, 150, 200, 300 mm, 3", 4", 5", 6", 8" and is packed with MCT insert blocks. The hardware is available in galvanized or stainless steel (316L).

See specific dimensions, sizes and sleeves

RGP 50 (2") (50mm)

RGP 50 (2") (50mm)

RGP 70 (2.75") or RGP 3" (76.2mm)

RGP 70 (2.75") or RGP 3" (76.2mm)

RGP 300 (11.8")

RGP 300 (11.8")

RGP 100 (3.93") or RGP 4" (101.6mm)

RGP 100 (3.93") or RGP 4" (101.6mm)

RGP 125 (4.92") or RGP 5" (127mm)

RGP 125 (4.92") or RGP 5" (127mm)

RGP 200 (7.87") or RGP 8" (203.2mm)

RGP 200 (7.87") or RGP 8" (203.2mm)

RGP 150 (5.90") or RGP 6" (152.4mm)

RGP 150 (5.90") or RGP 6" (152.4mm)

RGP Dimensions
RGP Weight Chart
RGP Tolerance

The round transit system consists of a round rubber frame and rubber blocks. The RGP circular multi cable & pipe transit is assembled in sleeves, pipes, drilled or cast holes and packed with rubber blocks suited for each cable and pipe dimension. The compression bolts are tightened to compress the rubber blocks against cables and pipes to establish a tight seal.

RGP has an open side intended for installation in holes where cables have already been pulled.
Open RGP

RGP Example
RGP Example
RGP Example
RGP Example
RGP Example
RGP Example
RGP Example
RGP Example

Performance

Working temperature
-65 to +70 °C
Gas-tightness
3 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load, 2 Bar - RGP-300 Catastrophic pressure load
Water-tightness
3 Bar - RGP-300 Catastrophic pressure load, 5 Bar - RGP - 50-200 & 2"-8" Catastrophic pressure load
Resistance to fire
EI30, EI60, EI90, EI120, EI240 - EN-1366-3
Maritime resistance to fire
A0, A60, H0, H60, H120
Ingress protection
IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
ABS
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Lloyd´s Register
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
PIPE - H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Assessment
DNV
Gas tightness (catastrophic), Water tightness (catastrophic)
A class fire
H class fire
PIPE - A class fire
MED
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
MCGA-UK Wheelmark
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

For more information visit Certificates

System components

Insertblock

Standard Block

For a fast and safe installation

Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.

See specs and variations  for Standard Block

Handiblock

For great flexibility

Newly developed. Provides greater flexibility, simple and safe installation.

See specs and variations  for Handiblock

AddBlock

For varying cable dimensions

Available in eleven block sizes and 66 cable dimensions.

See specs and variations  for AddBlock
Spare Block

Spare block

For the option of fitting new cables in the future

Unused space in the frame is filled with solid spare blocks.

See specs and variations  for Spare block

U-block

For converting block dimensions

Used to enlarge the external dimensions of blocks to the next modular size.

See specs and variations  for U-block

Waveguides

For waveguides

Installed in a solid insert block. Available with a revolving core for increased flexibility.

See specs and variations  for Waveguides

Standard Trefoil block

For a fast and safe installation

Designed to seal three holes in one block.

See specs and variations  for Standard Trefoil block

Lubricant

MCT Brattberg Lubricant for easier and safer installation.

Shall be applied on all Lycron parts sealing surfaces when such demands exist

See specs and variations  for Lubricant

CCM - Casting Module

For preparing and casting around our round transit

Concrete Casting Module - Knock-Out Plate

See specs and variations  for CCM - Casting Module

Block Selector

For cable and pipe measurement

For cable and pipe measurement. Insert blocks, add blocks and HandiBlocks.

See specs and variations  for Block Selector

Tweezers

Assist insertion of last block in each row

Assist insertion of last block in each row

See specs and variations  for Tweezers
