Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

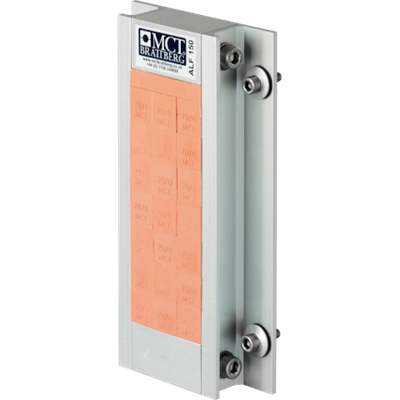

ALF cabinet seal is a cable penetration for applications where dust and water tightness are demanded. ALF is an aluminium fram and available with EMC protection, complete kit with gasket, sealing washers, bolts and nuts.

• ALF

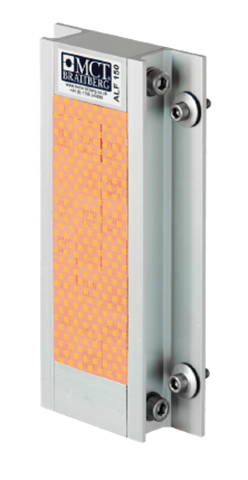

• E-ALF (EMC)

For standard sizes please see instructions and datasheet, product can also be supplied in multiple variations to suit customer requirements. ALF allows many cables to be installed into a small area, the clear opening and remove-able sides facilitate the installation of pre-terminated cables.

The cables are individually sealed with 30 mm deep Lycron inserts which are supplied from MCT Brattbergs.

ALF is compressed with two socket headed bolts using a standard 6 mm Allen key the simplicity of the system ensures it is easy to add or remove cable as required.

ALF is an anodized aluminium frame and supplied with a gasket, stainless steel fixing bolts, and sealing washers. See datasheet for exact components.
