EMC and G&B multi cable & pipe transits for maritime and offshore applications. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.

RGS EMC multi cable transit

E-RGS

Standard E-series

E-RGSF

For holes larger than the frame
RGSF EMC multi cable transit

E-RGSFB

For bolting
RGSC EMC multi cable transit

E-RGSC

For heavier loading
RGSK EMC multi cable transit

E-RGSK

For installing at a distance
RGS BTB EMC multi cable transit

E-RGSbtb

For twice the safety
RGSR EMC multi cable transit

E-RGSR

For higher degrees of stress or heavier loading
RGSFBO EMC multi cable transit

E-RGSFBO

For when cables are already in place
Select system
E-RGSStandard E-series E-RGSFFor holes larger than the frame E-RGSFBFor bolting E-RGSCFor heavier loading E-RGSKFor installing at a distance E-RGSbtbFor twice the safety E-RGSRFor higher degrees of stress or heavier loading E-RGSFBOFor when cables are already in place

E-RGSR

For higher degrees of stress or heavier loading

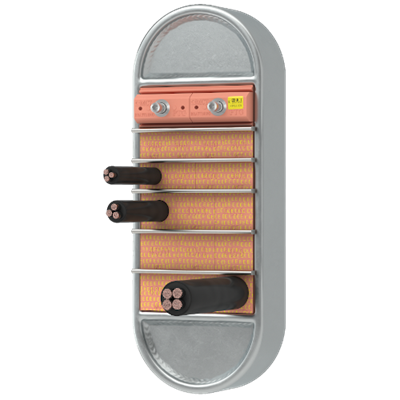

E-RGSR is used in decks and bulkheads which are subjected to high degrees of stress or heavier loading. The additional, rounded ends help prevent stress cracking.

Also available as:
Standard series Ex rated
RGSR EMC multi cable transit
Also available as:
Standard series Ex rated

EMC

  • All dimensions are exactly the same for the standard MCT Brattberg components.
  • All Insert Blocks are marked with yellow marking (see instructions).

Grounding and Bonding

  • For grounding & bonding applications standard presswedge or endpacking is sufficient.
  • Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
  • Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC.
  • G&B Datasheet

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

MCT Brattberg E-series Installation
Instruction documents

For more information visit Instructions and manuals

The E-RGSR is welded into an accurately pre-cut hole in the deck or bulkhead. As with all our transits, E-RGSK is produced in steel, stainless steel, or aluminium.

The radius of the ends is 70 mm (2.76”).

E-RGSR can be used in multiple frames. For weight charts and installation details, singularly or in multiple frames, contact MCT Brattberg.

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

The EMC secret is a tempered metal sheet which systematically stops electrical current from passing along the cable screening through the seal and successfully function as an extended wall screen.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

Benefits of MCT Brattberg E-systems

  • Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
  • Assists cable management.
  • Integral earthing between cables and wall screen.
  • Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
  • Special E-Series for Grounding and Bounding
  • System can be dismantled and re-used.

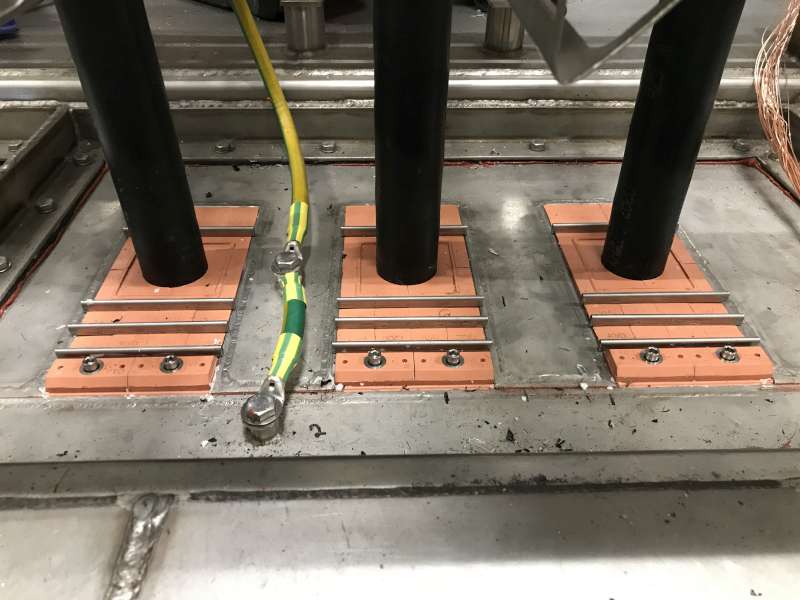

E-RGS Example
