MCT Ex - Marine & Offshore

RGS Ex rated cable and pipe transits are used in Ex hazardous maritime and offshore environments to minimize danger by preventing the spread of fire, water, gas chemicals and other hazardous substances.

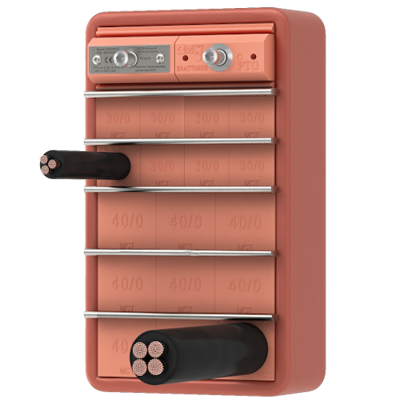

RGS EX multi cable transit

Ex

  • Available only as component.

Component:
Component is not intended to be used alone and requires additional consideration when incorporated into other equipment or systems for use in explosive atmospheres (refer to IEC 60079-0)

  • Ex system combined with EMC has yellow marking on the front face (see EMC instructions)

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.



Components Ex

Ex and ATEX requirements are very strict, some Ex Insert blocks may not be approved with certain systems.

  • Insert Blocks combined with EMC has yellow marking on the front face (see EMC instructions)
RGS frame, horizontal installation
RGS frame, vertical installation

For more information visit Instructions and manuals

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is welded or bolted to a Ex hazardous marine structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

The marking of the equipment and protective system:
 Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)

Benefits of MCT Brattberg Ex systems

  • Ex rated transit for hazardous environments
  • Assists cable management
  • Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
  • Can be combined with special EMC modules and for Grounding and Bounding
  • Unlike other brands our system can be dismantled and re-used
  • Cable dimension marked on block
  • No adaptation of standard blocks needed
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example

Performance

Working temperature
-65 to +70 °C
Water-tightness
6 Bar - Catastrophic pressure load
Gas-tightness
4 Bar - Catastrophic pressure load
Maritime resistance to fire
A0, A60, H0, H60, H120
Ingress protection
IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
ABS
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Lloyd´s Register
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
PIPE - H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
PIPE - A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Assessment
DNV
A class fire
Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire
RGS/RGB - FRP Composite fire resistance
Bureau Veritas
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Letter
MED
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
MCGA-UK Wheelmark
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

For more information visit Certificates

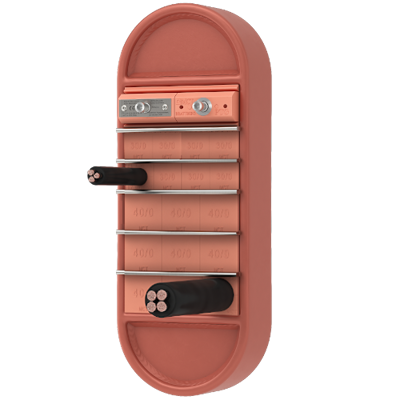

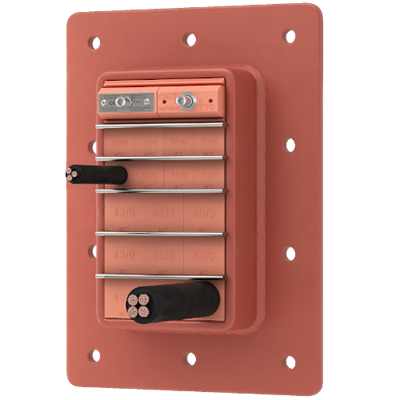

System components

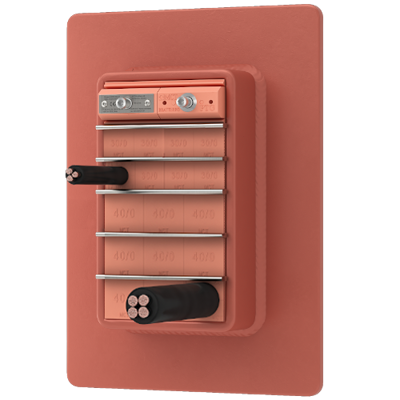

RGSF Ex multi cable transit

MCT Ex - Marine & Offshore | RGSF Ex

For holes larger than the frame

Ex rated transit welded into a hole which is slightly larger than the frame.

See specs and variations  for MCT Ex - Marine & Offshore | RGSF Ex

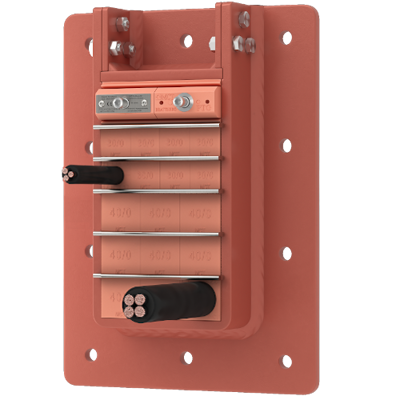

RGSFBO Ex multi cable transit

MCT Ex - Marine & Offshore | RGSFBO Ex

For when cables are already in place

Ex rated transit for bolting and for installations where cables are already in place.

See specs and variations  for MCT Ex - Marine & Offshore | RGSFBO Ex

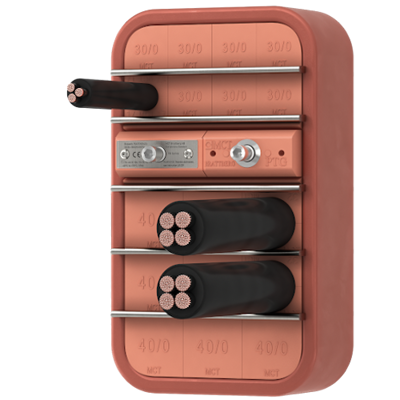

RGSC EX multi cable transit

MCT Ex - Marine & Offshore | RGSC Ex

For heavier loading

Ex rated transit welded into decks and bulkheads that are subjected to heavy loading.

See specs and variations  for MCT Ex - Marine & Offshore | RGSC Ex

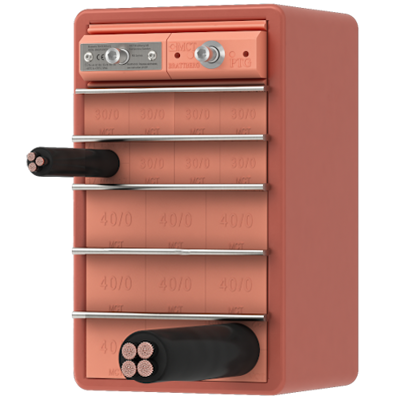

RGSK Ex multi cable transit

MCT Ex - Marine & Offshore | RGSk Ex

For installing at a distance

An extended Ex rated transit were pooling of water can take place.

See specs and variations  for MCT Ex - Marine & Offshore | RGSk Ex

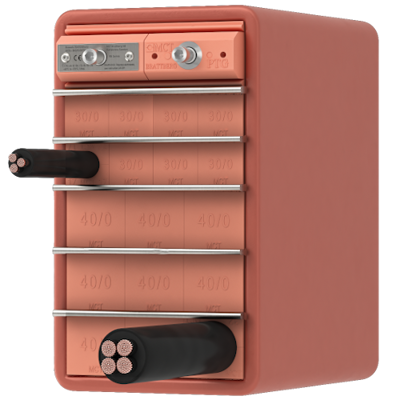

RGS BTB EX multi cable transit
