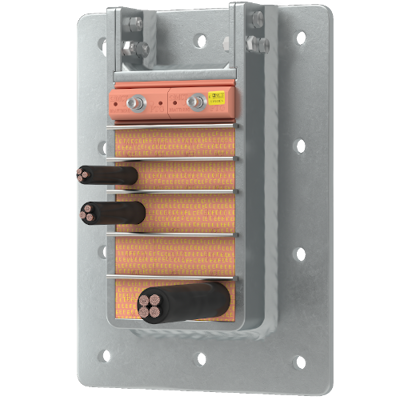

E-RGSK
E-RGSk is recommended if pooling of water on the transit face makes it necessary to install packing blocks at a certain distance from the deck or bulkhead.
EMC
- All dimensions are exactly the same for the standard MCT Brattberg components.
- All Insert Blocks are marked with yellow marking (see instructions).
Grounding and Bonding
- For grounding & bonding applications standard presswedge or endpacking is sufficient.
- Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
- Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC.
- G&B Datasheet
Correct and safe installations
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
For more information, please view following instructions, videos or download manuals as PDFs.
Instruction documents
For more information visit Instructions and manuals

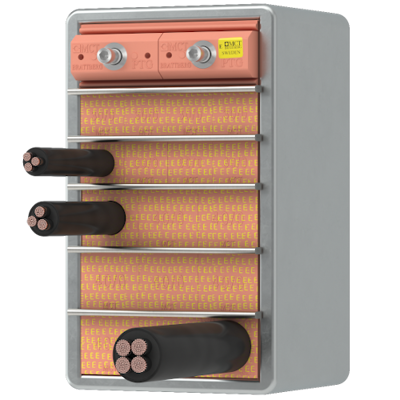

E-RGSK is an extended standard E-RGS transit, with machined grooves for stayplates and compression plates. The material is 10 mm (0.39”) thick on the ends and 12 mm (0.47”) thick on the sides.
E-RGSK transits are recommended if pooling of water on the transit face makes it necessary to install packing blocks at a certain distance from the deck or bulkhead. The frame is 120 mm (4.72”) deep (as opposed to 60 mm (2.36”) on an E-RGS) and of standard internal width 120 mm (4.72”).
Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).
Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.
The EMC secret is a tempered metal sheet which systematically stops electrical current from passing along the cable screening through the seal and successfully function as an extended wall screen.
RGSK 2
RGSK 8
General

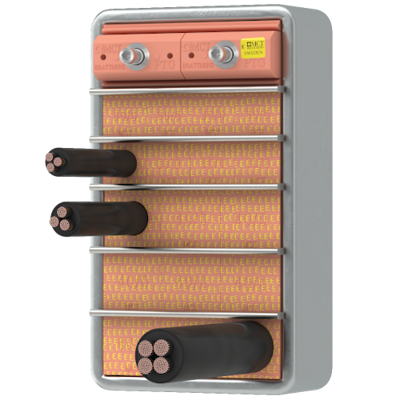

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.
- The EMC systems is also approved for grounding and bonding (G&B) applications
Benefits of MCT Brattberg E-systems
- Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
- Assists cable management.
- Integral earthing between cables and wall screen.
- Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
- Special E-Series for Grounding and Bounding
- System can be dismantled and re-used.
Performance@(isSystem ? "h3" : "h2")>
For more information visit Certificates
System components@(isSystem ? "h3" : "h2")>

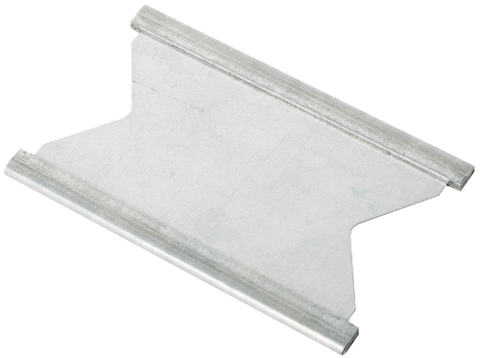

Stayplate
To be placed between each row of blocks.

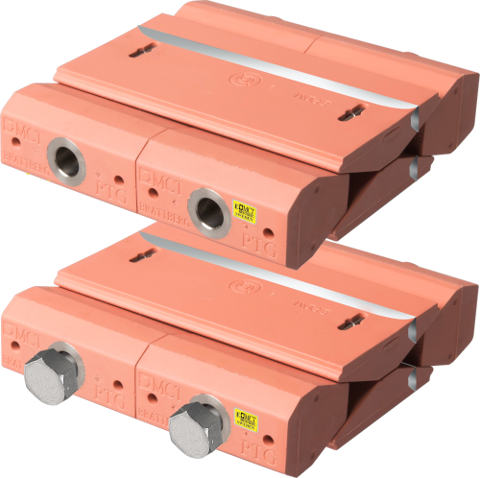

See specs and variations for StayplateE-PTG Presswedge
Can be installed anywhere in the frame. With protection against EMI, EMP and ESD

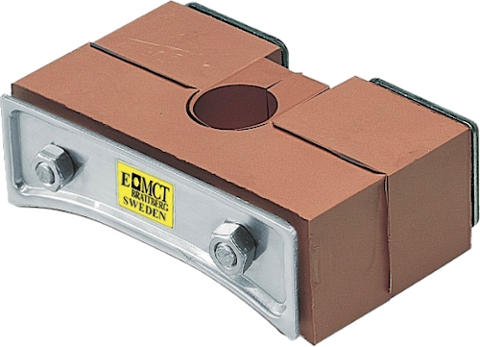

See specs and variations for E-PTG PresswedgeE-STG Endpacking
Installed between compression plate and the top of the frame. With protection against EMI, EMP and ESD

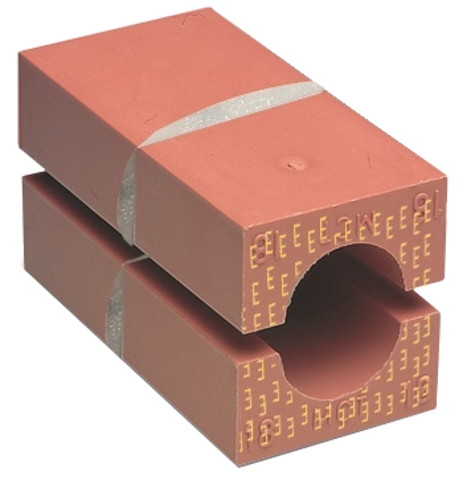

See specs and variations for E-STG EndpackingE-Standard Block

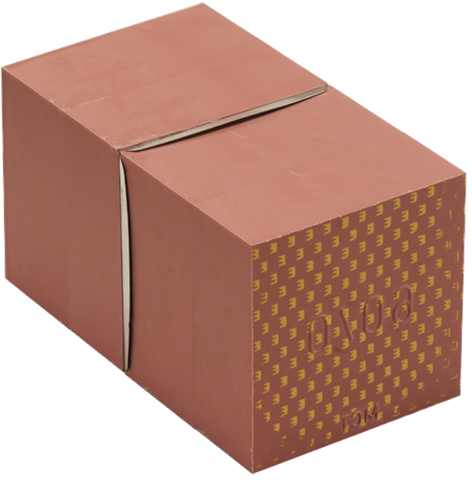

The E-Block has an integral copper sheet as discharging and shielding protection for protection against EMI, EMP and ESD

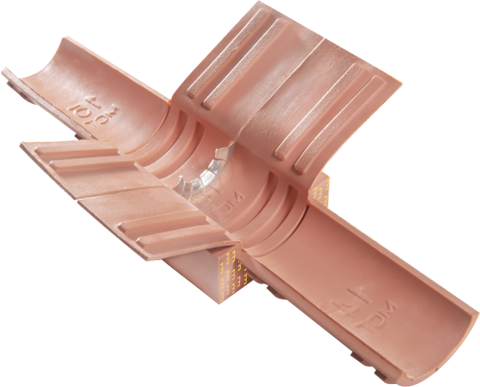

See specs and variations for E-Standard BlockE-Addblock
Available in eleven block sizes and 66 cable dimensions with protection against EMI, EMP and ESD
See specs and variations for E-AddblockE-Spareblock
Unused space in the frame is filled with solid E-Spareblocks for protection against EMI, EMP and ESD

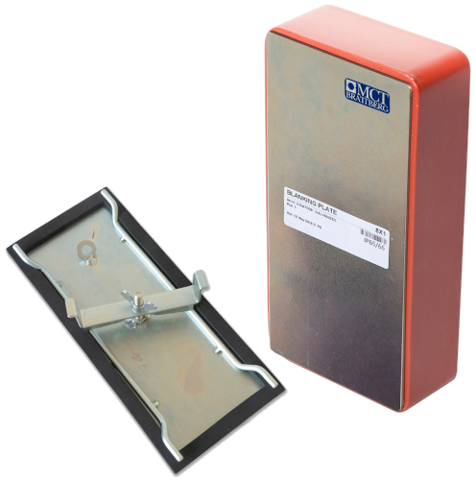

See specs and variations for E-SpareblockBlanking Plate
Ingress protection IP65/66

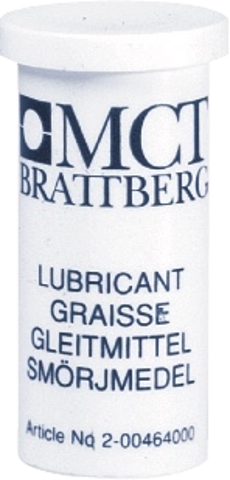

See specs and variations for Blanking PlateLubricant
Shall be applied on all Lycron parts sealing surfaces when such demands exist

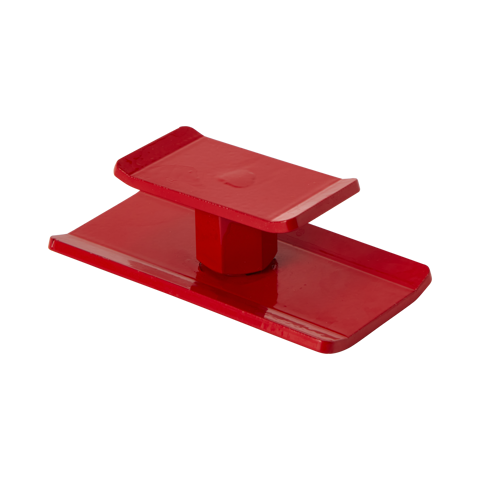

See specs and variations for LubricantPacking Tool Large/Small
Packing Tool L/S
See specs and variations for Packing Tool Large/SmallSTG Endpacking Puller
For re-entry into system

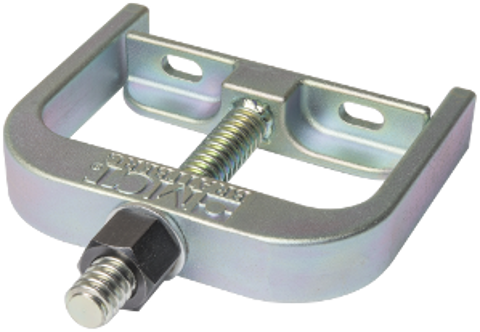

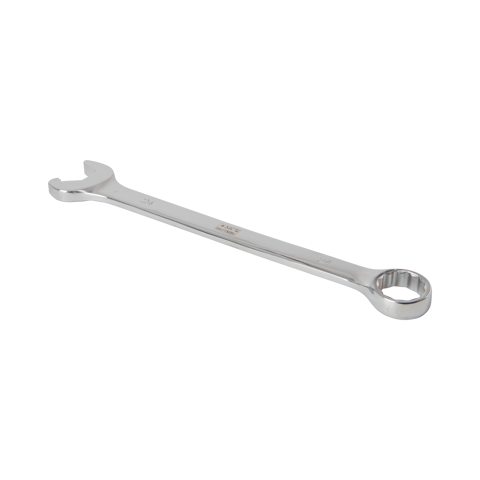

See specs and variations for STG Endpacking PullerQuick Release Spanner
For compression plate installation

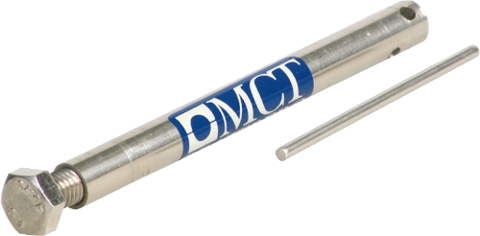

See specs and variations for Quick Release SpannerCable Separator
To aid installation of insert blocks by keeping away the interference of cables

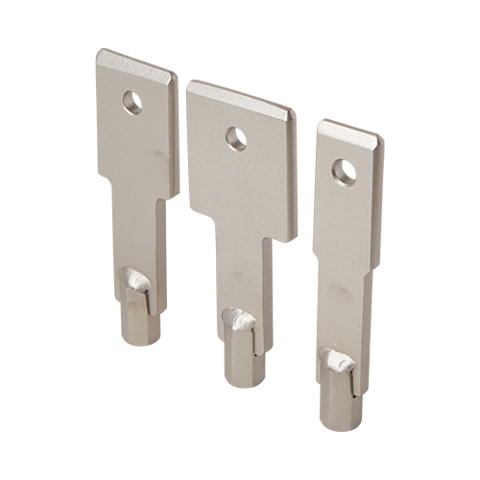

See specs and variations for Cable SeparatorSpacer Tool
Spacer Tool

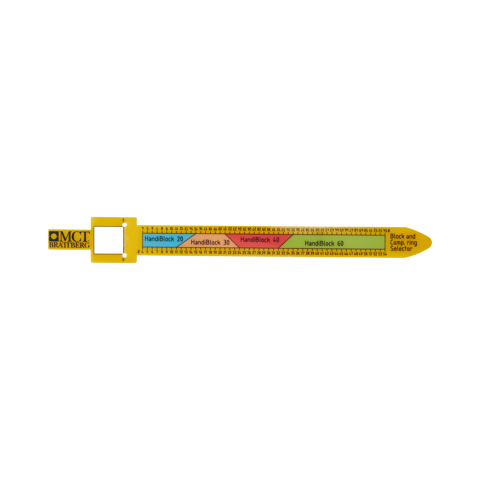

See specs and variations for Spacer ToolBlock Selector
For cable and pipe measurement. Insert blocks, add blocks and HandiBlocks.

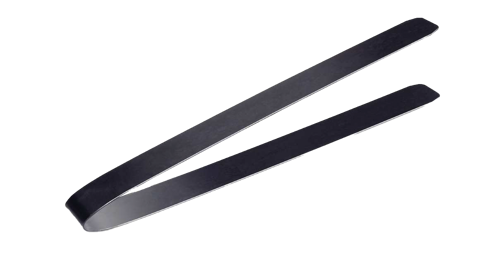

See specs and variations for Block SelectorTweezers
Assist insertion of last block in each row

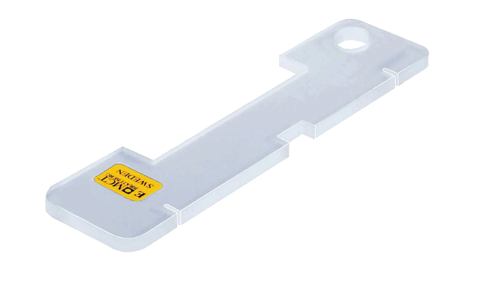

See specs and variations for TweezersEMC Marking Template
EMC Marking Template
See specs and variations for EMC Marking Template
