EMC and G&B multi cable & pipe transits for maritime and offshore applications. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.

E-RGSFBO

For when cables are already in place

E-RGSFBO is for bolting and installations where cables are already in place. The bolted transits can be used in areas where welding is prohibited, or when the stress level induced by welding is unacceptable.

Also available as:
Standard series Ex rated
RGSFBO EMC multi cable transit
Also available as:
Standard series Ex rated

EMC

  • All dimensions are exactly the same for the standard MCT Brattberg components.
  • All Insert Blocks are marked with yellow marking (see instructions).

Grounding and Bonding

  • For grounding & bonding applications standard presswedge or endpacking is sufficient.
  • Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
  • Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC.
  • G&B Datasheet

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

MCT Brattberg E-series Installation

Use bolts for this transit

This transit was designed for areas where welding is prohibited or welding induced stress levels making welding unacceptable. This transit is therefore to be fastened by bolts to ensure installation quality.

For more information visit Instructions and manuals

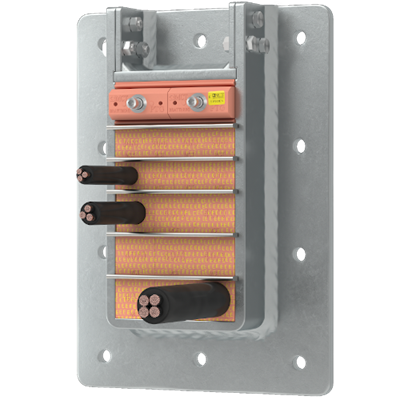

E-RGSFBO is a standard E-RGS transit with a flange that allows the frame to be bolted into a hole which is slightly larger than the frame

E-RGSFBO transits are supplied in kits, complete with drilled holes, bolts, nuts, washers and a gasket or sealing compound. The flange is 60x10mm. (2.36”x0.39”).

E-RGSFBO can also be installed in multiple frames.

Standard frames come in four sizes: 2, 4, 6 and 8. They are all the same width. Height differences are shown below. The material is 10 mm thick.

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

The EMC secret is a tempered metal sheet which systematically stops electrical current from passing along the cable screening through the seal and successfully function as an extended wall screen.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

Benefits of MCT Brattberg E-systems

  • Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
  • Assists cable management.
  • Integral earthing between cables and wall screen.
  • Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
  • Special E-Series for Grounding and Bounding
  • System can be dismantled and re-used.
E-RGS Example
E-RGS Example
E-RGS Example
E-RGS Example
E-RGS Example
Welding Frame

Performance

Working temperature
-65 to +70 °C
Water-tightness
6 Bar - Catastrophic pressure load
Gas-tightness
4 Bar - Catastrophic pressure load
Ingress protection
IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
Maritime resistance to fire
A60, H60
ABS
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Jet Fire J60-J120 & JF
Lloyd´s Register
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Jet Fire J60-J120 & JF
DNV
A class fire
Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire
RGS/RGB - FRP Composite fire resistance
Bureau Veritas
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
MED
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
MCGA-UK Wheelmark
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

For more information visit Certificates

System components

Stayplate

For increased stability

To be placed between each row of blocks.

See specs and variations  for Stayplate

E-PTG Presswedge

For completing the seal with EMC and G&B capabilites

Can be installed anywhere in the frame. With protection against EMI, EMP and ESD

See specs and variations  for E-PTG Presswedge

E-STG Endpacking

For completing the seal with EMC and G&B capabilites

Installed between compression plate and the top of the frame. With protection against EMI, EMP and ESD

See specs and variations  for E-STG Endpacking

E-Standard Block

For EMC and G&B capabilities

The E-Block has an integral copper sheet as discharging and shielding protection for protection against EMI, EMP and ESD

See specs and variations  for E-Standard Block

E-Addblock

For varying cable dimensions and EMC and G&B capabilities

Available in eleven block sizes and 66 cable dimensions with protection against EMI, EMP and ESD

See specs and variations  for E-Addblock

E-Spareblock

For the option of fitting new cables in the future and EMC and G&B capabilities

Unused space in the frame is filled with solid E-Spareblocks for protection against EMI, EMP and ESD

See specs and variations  for E-Spareblock

Blanking Plate

Seals frame prior to block installation

Ingress protection IP65/66

See specs and variations  for Blanking Plate

Lubricant

MCT Brattberg Lubricant for easier and safer installation.

Shall be applied on all Lycron parts sealing surfaces when such demands exist

See specs and variations  for Lubricant

Packing Tool Large/Small

Compresses insert block to hold cable/pipes during partional installations.

Packing Tool L/S

See specs and variations  for Packing Tool Large/Small

STG Endpacking Puller

For re-entry into system

For re-entry into system

See specs and variations  for STG Endpacking Puller

Quick Release Spanner

For compression plate installation

For compression plate installation

See specs and variations  for Quick Release Spanner

Cable Separator

To aid installation of insert blocks

To aid installation of insert blocks by keeping away the interference of cables

See specs and variations  for Cable Separator

Spacer Tool

Simplifies insertion of last row of blocks

Spacer Tool

See specs and variations  for Spacer Tool

Block Selector

For cable and pipe measurement

For cable and pipe measurement. Insert blocks, add blocks and HandiBlocks.

See specs and variations  for Block Selector

Tweezers

Assist insertion of last block in each row

Assist insertion of last block in each row

See specs and variations  for Tweezers

EMC Marking Template

Ensures earth contact for all cables in the transit.

EMC Marking Template

See specs and variations  for EMC Marking Template
