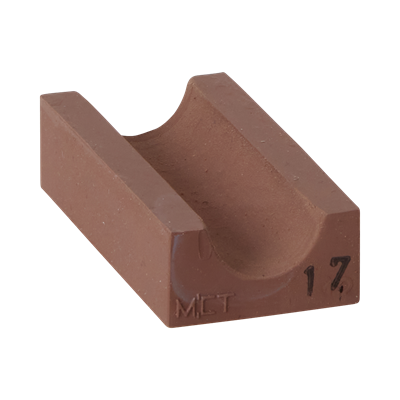

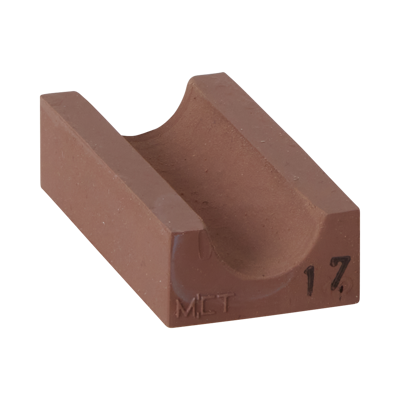

High Temp Block

Heat stabilized flame retardant silicone rubber

The material Lycrosil is a heat stabilized flame retardant silicone rubber. Lycrosil has very good resistance to hot air temperatures with a maximum working temperature of 250°C and maximum short-term (2hrs) temperature of 300°C .The temperatures given shall be regarded as guidelines and can vary depending on if the material is subjected to an aggressive environment/media. At the temperatures/times stated, the properties of the material can be said to be unaffected.

  • They are designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”).
  • Other dimensions can be supplied to order.

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

RGS Frame horizontal
How to install a MCT Brattberg RGS/RGB frame, vertical

For more information visit Instructions and manuals

Each block consists of two halves which together creates a square shaped 60 mm long sealing insert. Insert blocks are divided up in seven sizes, 15, 20, 30, 40, 60, 80, 90 and 120 mm in square. Also available as Spare blocks for the option of fitting new cables in the future.

High Temp Block
High Temp Block

Similar products

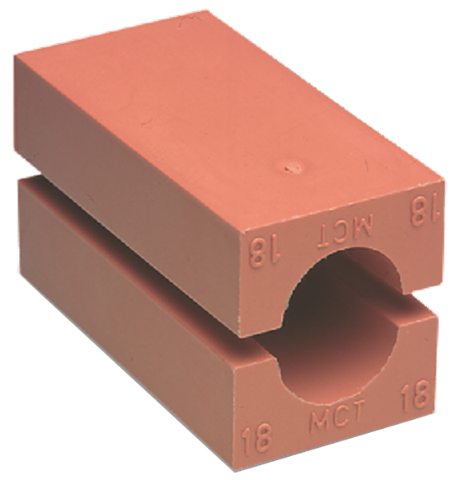

Insertblock

Standard Block

For a fast and safe installation

Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.

See specs and variations  for Standard Block

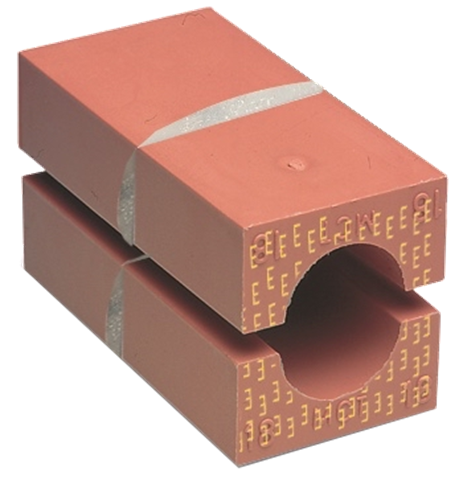

E-Standard Block

For EMC and G&B capabilities

The E-Block has an integral copper sheet as discharging and shielding protection for protection against EMI, EMP and ESD

See specs and variations  for E-Standard Block

Handiblock

For great flexibility

Newly developed. Provides greater flexibility, simple and safe installation.

See specs and variations  for Handiblock

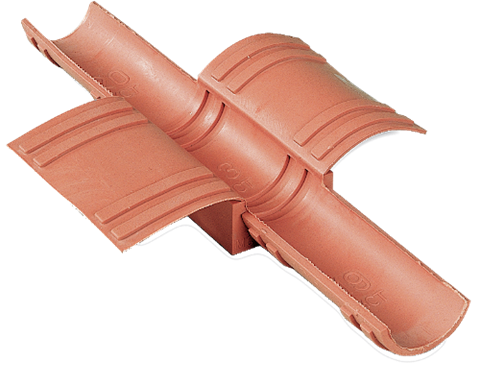

AddBlock
