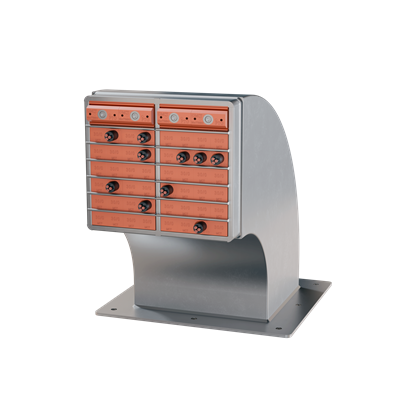

Swan Neck Frame
The MCT Brattberg Swan Neck frame is designed for rooftop installations. It features either one or two openings. It is to be used with corresponding MCT Brattberg components to form a complete sealing solution.
Attachment is done by bolting.
Correct and safe installations
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
