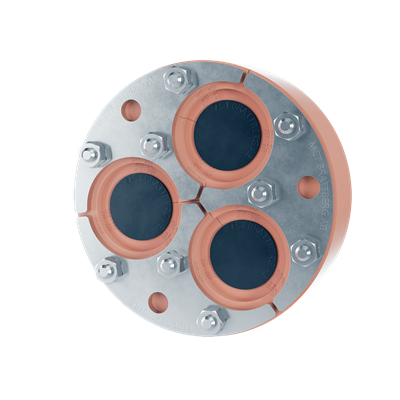

Duct Seal Trefoil

Intended to be used underground and in ducts.

On land Duct Seal ECO

Manufactured sustainable in Sweden.
Fully 100% recyclable materials.
To seal holes with aperture dimension 150 - 153 mm.
To seal services between 30 - 55 mm.
Cable OD marked on layers
Fast installation – one part & few layers
(not three parts or heat shrinking)
Seal is 40mm allows extreme cable bending

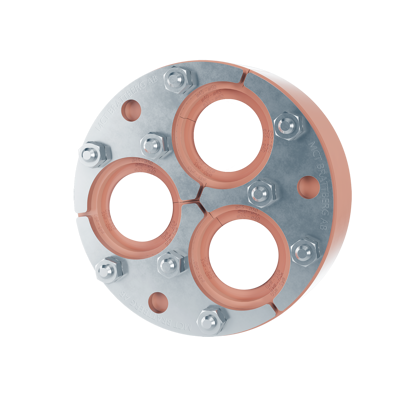

Incl. Plug (optional)

Instruction documents

DS-150 TF Datasheet (pdf)

For more information visit Instructions and manuals

Performance	Type	Standard
IP Rating:	IP68	IEC 60529
In-service Constant water pressure:	0,3 Bar.	IEC 60529
In-service Catastrophic water pressure:	1,5 Bar	Third party witness hydrostatic type testing, CP-0165
Pressure tested:	3 Bar	Indoor hydrostatic testing, CP-0165
Data
Trade name:	MCT Brattberg DS-150 TF
Working Tempature:	-65 to +70 degrees C
Hardness:	60-80 IRHD
Shelf life:	≥ 10 years
Service life:	≥ 40 years
Hardware:	Stainless steel316
Sealing material	Plastic elastomer
