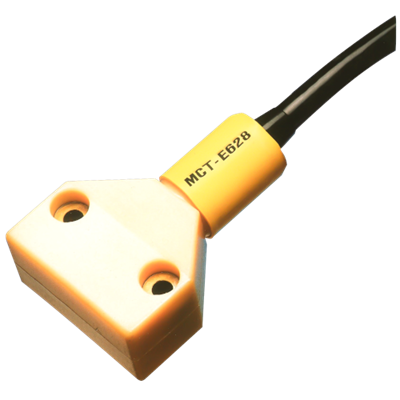

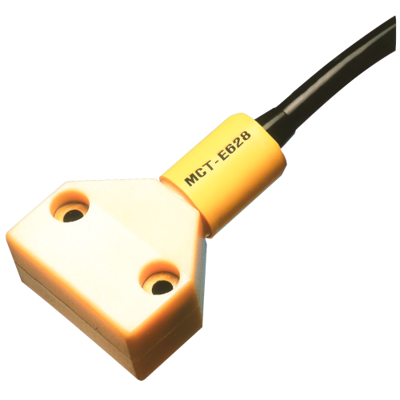

Encapsulation
The encapsulation of inductive sensors and connectors are used to ensure a watertight seal. It is a custom designed product that is tested and inspected in accordance to specifications.
- Custom designed
- Tested and inspected acc. to specification
Application dimensions and types of sensors and connectors are decided by the customer. The sensors and connectors are currently used in different types of submarines.
Application dimensions and types of sensors and connectors are decided by the customer. The sensors and connectors are currently used in different types of submarines.
|
Typical technical data (acc. to customer demands) Hydrostatic pressure: Test pressure: 5 MPa (50bar) or acc. to specification. |
Following testing and inspections are available upon request
• Dimension and visual inspection
• Radiographic examination of moulding
• Leak detection test
• Hydrostatic pressure test
• High voltage test
• Insulation resistance test
• Conductor continuity and function test
• Result verification and inspection report/certificate
• Or other tests specified by the customer
Similar products

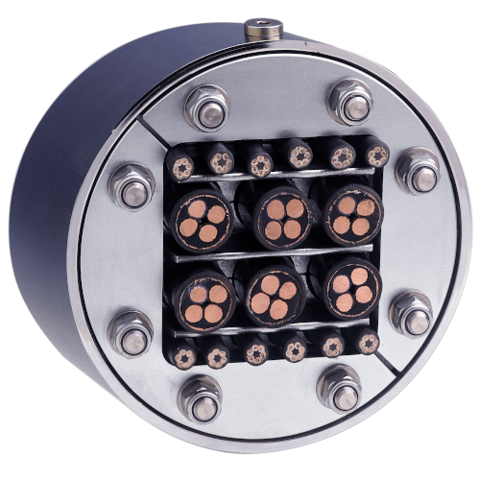

RGPH
Can be designed to seal 1-36 cables between 4-110mm in diameter, depending on pressure.
See specs and variations for RGPH

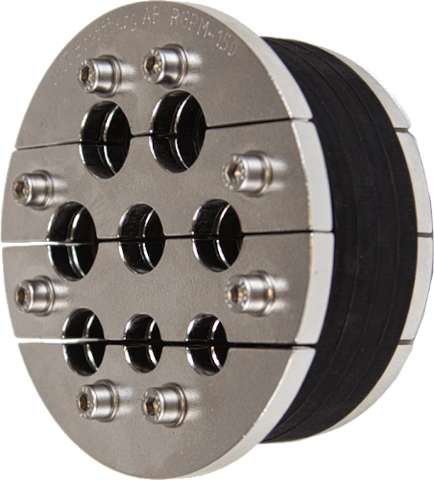

RGPM
RGPM pressure seal approved for a continuous pressure up to 15 bar with almost unlimited designations of numbers and dimensions of cables and pipes.
See specs and variations for RGPM

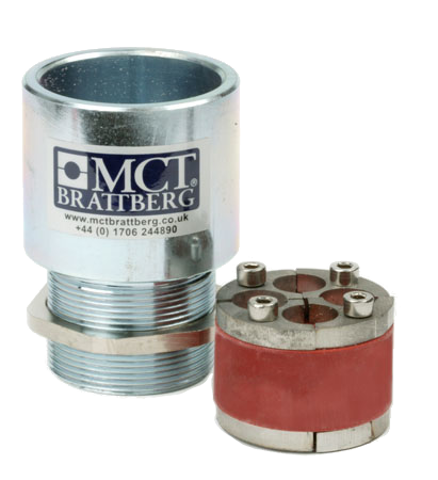

MSR glands
The MSR glands are designed to seal up to 8 cables between 4 and 32 mm (0.16” and 1.26”) diameter.
See specs and variations for MSR glands

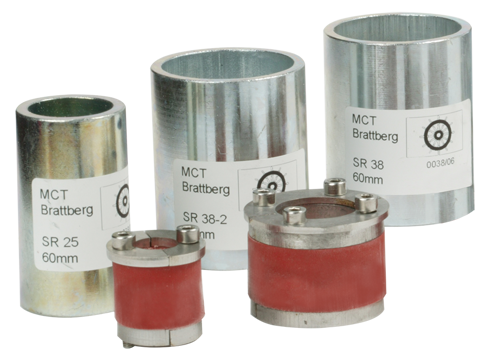

SR cable and pipe seals
