E-MCT - Landbased | E-RGG-OK
On land Power Plant

EMC and G&B multi cable & pipe transits used in high-risk land-based environments. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.

E-RGG-O

For when cables are already in place

E-RGG-OK

For when the penetration vary

E-RGG

For bolting

E-RGB

Standard E-series
Select system
E-RGG-OFor when cables are already in place E-RGG-OKFor when the penetration vary E-RGGFor bolting E-RGBStandard E-series

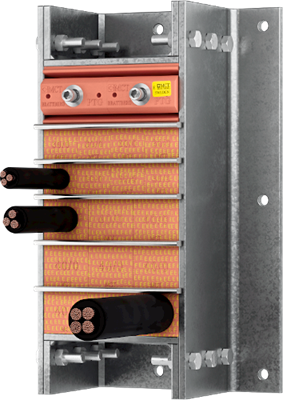

E-RGG-OK

For when the penetration vary

  • Mounting gasket and hardware available

  • Applicable on core-drilled holes

  • Openable and retrofit

E-RGG-OK transit type can be bolted onto concrete, plaster board wall or casted into a concrete wall or floor to protect against flooding, water and ingress.

  • Type approved cable transit for buildings
  • Can be casted in concrete
  • Assists cable management
  • Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
  • Unlike other brands our system can be dismantled and re-used
  • Marked cable designation on blocks for increased safety
  • No adaptation of standard blocks needed

E-RGG-OK have removable ends which enables installation where cables already have been pulled.

Also available as:
Standard series Ex rated
Also available as:
Standard series Ex rated

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

MCT Brattberg E-series Installation
Instructions E-RGB 1
Instructions E-RGB 2
Instructions E-RGB 3

Use bolts for this transit

This transit was designed for areas where welding is prohibited or welding induced stress levels making welding unacceptable. This transit is therefore to be fastened by bolts to ensure installation quality.

RGG-OK
Instruction documents

For more information visit Instructions and manuals

The transit is made of two angle bars 60x6 and two gables in galvanized mild steel.

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Standard frames in four different sizes: 2, 4, 6 and 8 which mark different heights. All have the same width.

Can be installed in horizontal combinations.

Informational Drawing

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable

Please see information drawings for detailed data.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

Benefits of MCT Brattberg E-systems

  • Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
  • Assists cable management.
  • Integral earthing between cables and wall screen.
  • Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
  • Special E-Series for Grounding and Bounding
  • System can be dismantled and re-used.
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example
E-RGG Example

E-series (EMC)

Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD)

See more

Grounding and bonding

Our E-series products comply to both UL and CSA standards

See more

Lycron material for high performance

The system consists of components made of lycron. These are halogen free and flame retardant.

See more

Multiple frames

The system can be installed with multiple frames for a greater capacity

See more

Horizontal multiple frames

The system can be installed with multiple frames placed horizontally.

See more

Performance

Working temperature
-65 to +70 °C
Resistance to fire
EI30, EI60, EI90, EI120, EI240 - EN-1366-3
Ingress protection
IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.

System components

Stayplate

For increased stability

To be placed between each row of blocks.

See specs and variations  for Stayplate

E-PTG Presswedge

For completing the seal with EMC and G&B capabilites

Can be installed anywhere in the frame. With protection against EMI, EMP and ESD

See specs and variations  for E-PTG Presswedge

E-STG Endpacking

For completing the seal with EMC and G&B capabilites

Installed between compression plate and the top of the frame. With protection against EMI, EMP and ESD

See specs and variations  for E-STG Endpacking

E-Standard Block

For EMC and G&B capabilities

The E-Block has an integral copper sheet as discharging and shielding protection for protection against EMI, EMP and ESD

See specs and variations  for E-Standard Block

E-Addblock

For varying cable dimensions and EMC and G&B capabilities

Available in eleven block sizes and 66 cable dimensions with protection against EMI, EMP and ESD

See specs and variations  for E-Addblock

E-Spareblock

For the option of fitting new cables in the future and EMC and G&B capabilities

Unused space in the frame is filled with solid E-Spareblocks for protection against EMI, EMP and ESD

See specs and variations  for E-Spareblock

Blanking Plate

Seals frame prior to block installation

Ingress protection IP65/66

See specs and variations  for Blanking Plate

Lubricant

MCT Brattberg Lubricant for easier and safer installation.

Shall be applied on all Lycron parts sealing surfaces when such demands exist

See specs and variations  for Lubricant

Packing Tool Large/Small

Compresses insert block to hold cable/pipes during partional installations.

Packing Tool L/S

See specs and variations  for Packing Tool Large/Small

STG Endpacking Puller

For re-entry into system

For re-entry into system

See specs and variations  for STG Endpacking Puller

Quick Release Spanner

For compression plate installation

For compression plate installation

See specs and variations  for Quick Release Spanner

Cable Separator

To aid installation of insert blocks

To aid installation of insert blocks by keeping away the interference of cables

See specs and variations  for Cable Separator

Spacer Tool

Simplifies insertion of last row of blocks

Spacer Tool

See specs and variations  for Spacer Tool

Block Selector

For cable and pipe measurement

For cable and pipe measurement. Insert blocks, add blocks and HandiBlocks.

See specs and variations  for Block Selector

Tweezers

Assist insertion of last block in each row

Assist insertion of last block in each row

See specs and variations  for Tweezers

EMC Marking Template

Ensures earth contact for all cables in the transit.

EMC Marking Template

See specs and variations  for EMC Marking Template
