EMC and G&B multi cable & pipe transits used in high-risk land-based environments. The EMC transits & components provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity.

E-RGG-O

For when cables are already in place

E-RGG-OK

For when the penetration vary

E-RGG

For bolting

E-RGB

Standard E-series
Select system
E-RGG-OFor when cables are already in place E-RGG-OKFor when the penetration vary E-RGGFor bolting E-RGBStandard E-series

E-RGG-O

For when cables are already in place

  • Fast delivery

  • Low lead time, always in stock

  • Openable and retrofit

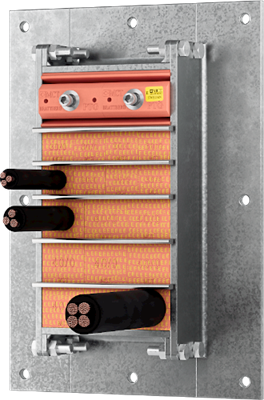

RGG-O transit type can be bolted onto concrete, plaster board wall or casted into a concrete wall or floor to protect against flooding, water and ingress.

  • Type approved cable transit for buildings
  • Can be casted in concrete
  • Assists cable management
  • Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
  • Unlike other brands our system can be dismantled and re-used
  • Marked cable designation on blocks for increased safety
  • No adaptation of standard blocks needed

E-RGG-O have removable ends which enables installation where cables already have been pulled.

Also available as:
Standard series Ex rated
Also available as:
Standard series Ex rated

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

MCT Brattberg E-series Installation
Instructions E-RGB 1
Instructions E-RGB 2
Instructions E-RGB 3

Use bolts for this transit

This transit was designed for areas where welding is prohibited or welding induced stress levels making welding unacceptable. This transit is therefore to be fastened by bolts to ensure installation quality.

RGG-O
Instruction documents

For more information visit Instructions and manuals

The standard transit is made of an angle bar 60x60x6 mm, in mild steel, stainless steel or aluminium. The mild steel transits are supplied with two types of surface finish, primer or galvanized.

The transit is made of two angle bars 60x6 and two gables in galvanized mild steel.
The standard height varies with the sizes - 2, 4, 6 or 8 (internal width 120.5 ± 1), all have the same width.

Can be installed in horizontal combinations.

RGB D5

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable

Please see information drawings for detailed data.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is casted or bolted to a structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

Benefits of MCT Brattberg E-systems

  • Protects against electrical and magnetic interference (EMI), “bugging”, electronic sabotage (SEMP) and static electricity (ESD).
  • Assists cable management.
  • Integral earthing between cables and wall screen.
  • Also seals the penetration against the passage of fire, water, gas, sound and environmental hazards.
  • Special E-Series for Grounding and Bounding
  • System can be dismantled and re-used.
