MCT Ex - Marine & Offshore | RGSC Ex
At sea Oil rigs

RGS Ex rated cable and pipe transits are used in Ex hazardous maritime and offshore environments to minimize danger by preventing the spread of fire, water, gas chemicals and other hazardous substances.

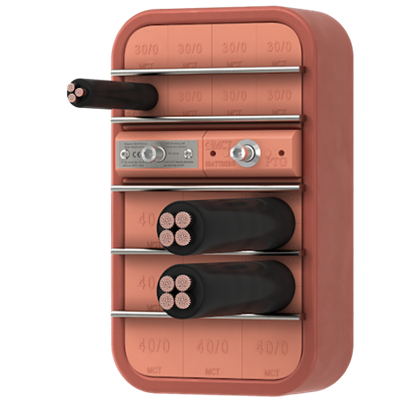

RGSC Ex

For heavier loading

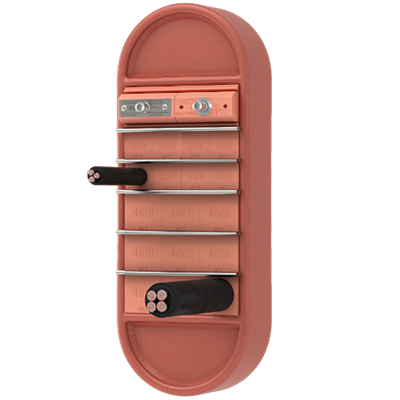

RGSC Ex is used in decks and bulkheads which are subjected to higher degrees of stress or heavier loading. The additional, rounded ends help prevent stress cracking. Special corner blocks and STG-endpackings with rounded corners are available.



The marking of the equipment and protective system

 Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)

Also available as:
Standard series E-series
RGSC EX multi cable transit
Also available as:
Standard series E-series

Ex

  • Available only as component.

Component:
Component is not intended to be used alone and requires additional consideration when incorporated into other equipment or systems for use in explosive atmospheres (refer to IEC 60079-0)

  • Ex system combined with EMC has yellow marking on the front face (see EMC instructions)

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.



Components Ex

Ex and ATEX requirements are very strict, some Ex Insert blocks may not be approved with certain systems.

  • Insert Blocks combined with EMC has yellow marking on the front face (see EMC instructions)
RGS frame, horizontal installation
RGS frame, vertical installation

For more information visit Instructions and manuals

RGSC Ex can also be supplied as multiple transits. Available in mild steel, stainless steel and aluminium.


Cornerblocks (R20)

Standard frames come in four sizes: 2, 4, 6 and 8. They are all the same width. Height differences are shown below. The material is 10 mm (0.39”) thick.

Available as:
C20/0 R20, C30/0 R20, C40/20x20 R40, C 60/40x40, C60/0 R40

RGSC Corner Radius
Internal Radius External Radius
R20 R30
R40 R50
R60 R70

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

General

The system consists of a frame, rubber blocks and a compression unit. The frame is welded or bolted to a Ex hazardous marine structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

The marking of the equipment and protective system:
 Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)

Benefits of MCT Brattberg Ex systems

  • Ex rated transit for hazardous environments
  • Assists cable management
  • Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
  • Can be combined with special EMC modules and for Grounding and Bounding
  • Unlike other brands our system can be dismantled and re-used
  • Cable dimension marked on block
  • No adaptation of standard blocks needed
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example
RGS Ex Example

Performance

Working temperature
-65 to +70 °C
Water-tightness
6 Bar - Catastrophic pressure load
Gas-tightness
4 Bar - Catastrophic pressure load
Maritime resistance to fire
A0, A60, H0, H60, H120
Ingress protection
IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
ABS
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Lloyd´s Register
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
PIPE - H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
PIPE - A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Assessment
DNV
A class fire
Gas tightness (catastrophic), Water tightness (catastrophic)
H class fire
RGS/RGB - FRP Composite fire resistance
Bureau Veritas
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
Letter
MED
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)
MCGA-UK Wheelmark
A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

For more information visit Certificates

System components

RGSF Ex multi cable transit

MCT Ex - Marine & Offshore | RGSF Ex

For holes larger than the frame

Ex rated transit welded into a hole which is slightly larger than the frame.

See specs and variations  for MCT Ex - Marine & Offshore | RGSF Ex

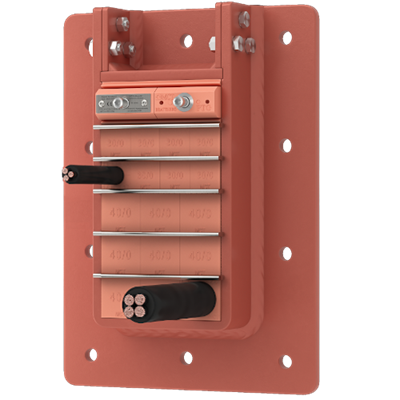

RGSFBO Ex multi cable transit

MCT Ex - Marine & Offshore | RGSFBO Ex

For when cables are already in place

Ex rated transit for bolting and for installations where cables are already in place.

See specs and variations  for MCT Ex - Marine & Offshore | RGSFBO Ex
RGSC EX multi cable transit

MCT Ex - Marine & Offshore | RGSC Ex

For heavier loading

Ex rated transit welded into decks and bulkheads that are subjected to heavy loading.

See specs and variations  for MCT Ex - Marine & Offshore | RGSC Ex

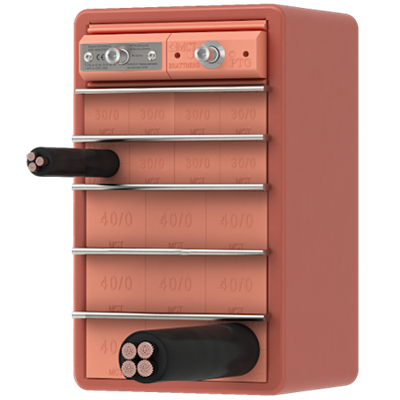

RGSK Ex multi cable transit

MCT Ex - Marine & Offshore | RGSk Ex

For installing at a distance

An extended Ex rated transit were pooling of water can take place.

See specs and variations  for MCT Ex - Marine & Offshore | RGSk Ex
RGS BTB EX multi cable transit

MCT Ex - Marine & Offshore | RGSbtb Ex

For twice the safety

A double Ex rated transit which is packed from both sides, enabling on site pressure testing and twice the safety.

See specs and variations  for MCT Ex - Marine & Offshore | RGSbtb Ex

Stayplate

For increased stability

To be placed between each row of blocks.

See specs and variations  for Stayplate

STG Endpacking

For completing the seal

Installed between compression plate and the top of the frame.

See specs and variations  for STG Endpacking

PTG Presswedge

For completing the seal

Can be installed anywhere in the frame.

See specs and variations  for PTG Presswedge
Insertblock

Standard Block

For a fast and safe installation

Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.

See specs and variations  for Standard Block

AddBlock

For varying cable dimensions

Available in eleven block sizes and 66 cable dimensions.

See specs and variations  for AddBlock
Spare Block

Spare block

For the option of fitting new cables in the future

Unused space in the frame is filled with solid spare blocks.

See specs and variations  for Spare block

U-block

For converting block dimensions

Used to enlarge the external dimensions of blocks to the next modular size.

See specs and variations  for U-block

Blanking Plate

Seals frame prior to block installation

Ingress protection IP65/66

See specs and variations  for Blanking Plate

Lubricant

MCT Brattberg Lubricant for easier and safer installation.

Shall be applied on all Lycron parts sealing surfaces when such demands exist

See specs and variations  for Lubricant

Packing Tool Large/Small

Compresses insert block to hold cable/pipes during partional installations.

Packing Tool L/S

See specs and variations  for Packing Tool Large/Small

STG Endpacking Puller

For re-entry into system

For re-entry into system

See specs and variations  for STG Endpacking Puller

Quick Release Spanner

For compression plate installation

For compression plate installation

See specs and variations  for Quick Release Spanner

Cable Separator

To aid installation of insert blocks

To aid installation of insert blocks by keeping away the interference of cables

See specs and variations  for Cable Separator

Spacer Tool

Simplifies insertion of last row of blocks

Spacer Tool

See specs and variations  for Spacer Tool

Tweezers

Assist insertion of last block in each row

Assist insertion of last block in each row

See specs and variations  for Tweezers
