RGS Ex rated cable and pipe transits are used in Ex hazardous maritime and offshore environments to minimize danger by preventing the spread of fire, water, gas chemicals and other hazardous substances.

RGS Ex

Standard Ex

RGSF Ex

For holes larger than the frame

RGSFB Ex

For bolting

RGSFBO Ex

For when cables are already in place

RGSC Ex

For heavier loading

RGSk Ex

For installing at a distance

RGSbtb Ex

For twice the safety

RGSr Ex

For higher degrees of stress or heavier loading

Ex

Available only as component.

Component:
Component is not intended to be used alone and requires additional consideration when incorporated into other equipment or systems for use in explosive atmospheres (refer to IEC 60079-0)

Ex system combined with EMC has yellow marking on the front face (see EMC instructions)

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

Components Ex

Ex and ATEX requirements are very strict, some Ex Insert blocks may not be approved with certain systems.

Insert Blocks combined with EMC has yellow marking on the front face (see EMC instructions)

Instruction documents

Ex Frame Installation guide (pdf)

Ex Installation Of Frames Welded (pdf)

Ex Installation Of Frames Bolted (pdf)

Ex Frame Matrix Component (pdf)

Ex Frame Matrix Equipment (pdf)

Work Installation Guide Welding Clamp (pdf)

Cutout Comparison (pdf)

Planning The Packing Space (pdf)

Welding Instruction & Built-in instructions (pdf)

Welding Aluminium (pdf)

Welding Stainless Steel (pdf)

Work Installation Guide RGSF (pdf)

Cutout Dimensions RGSF (pdf)

For more information visit Instructions and manuals

Width of the flange: 60 mm (2.36”) wide and 10 mm (0.39”) thick.

RGSF Ex can also be installed in multiple frames.

Standard frames come in eight sizes: 1, 2, 3, 4, 5, 6, 7, and 8.
The internal width can be 60.5 ± 1 (Size 1,3,5,7) or 120.5 ± 1 (2,4,6,8).

Note that there can be limitations in type-approvals & certificates, making certain sizes inapplicable.

For size and weight please see tables in the MCT Online Catalogue:

MCT Catalogue

RGSF 2

RGSF 2X1 1190395 A

RGSF 2X2 1190396 A

RGSF 2X3 1190397 A

RGSF 2X4 1190398 A

RGSF 2X5 1190399 A

RGSF 2X6 1190400 A

RGSF 2X7 1190401 A

RGSF 2X8 1190402 A

RGSF 2X9 1190403 A

RGSF 2X10 1190404 A

RGSF 8

RGSF 8X1 1190425 A

RGSF 8X2 1190426 A

RGSF 8X3 1190427 A

RGSF 8X4 1190428 A

RGSF 8X5 1190429 A

RGSF 8X6 1190430 A

RGSF 8X7 1190431 A

RGSF 8X8 1190432 A

RGSF 8X9 1190433 A

RGSF 8X10 1190434 A

RGSF 4

RGSF 4X1 1190405 A

RGSF 4X2 1190406 A

RGSF 4X3 1190407 A

RGSF 4X4 1190408 A

RGSF 4X5 1190409 A

RGSF 4X6 1190410 A

RGSF 4X7 1190411 A

RGSF 4X8 1190412 A

RGSF 4X9 1190413 A

RGSF 4X10 1190414 A

RGSF 6

RGSF 6X1 1190415 A

RGSF 6X2 1190416 A

RGSF 6X3 1190417 A

RGSF 6X4 1190418 A

RGSF 6X5 1190419 A

RGSF 6X6 1190420 A

RGSF 6X7 1190421 A

RGSF 6X8 1190422 A

RGSF 6X9 1190423 A

RGSF 6X10 1190424 A

General

The system consists of a frame, rubber blocks and a compression unit. The frame is welded or bolted to a Ex hazardous marine structure and packed with rubber blocks suited for each cable and pipe dimension. The compression unit is inserted to compress the rubber blocks against cables and pipes to establish a tight seal.

The marking of the equipment and protective system:
Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-60°C to+70°C)

Benefits of MCT Brattberg Ex systems

Ex rated transit for hazardous environments
Assists cable management
Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
Can be combined with special EMC modules and for Grounding and Bounding
Unlike other brands our system can be dismantled and re-used
Cable dimension marked on block
No adaptation of standard blocks needed

Ex rated (IECEx & ATEX)

Ex rated transit for hazardous environments

Lycron material for high performance

The system consists of components made of lycron. These are halogen free and flame retardant.

Multiple frames

The system can be installed with multiple frames for a greater capacity

Performance

Working temperature

-65 to +70 °C

Water-tightness

6 Bar - Catastrophic pressure load

Gas-tightness

4 Bar - Catastrophic pressure load

Maritime resistance to fire

A0, A60, H0, H60, H120

Ingress protection

IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.

ABS

A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

22 2241506 PDA (pdf)

H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

20 2032347 PDA (pdf)

Lloyd´s Register

A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

LR21489572SF (pdf)

H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

LR23410499SF (pdf)

PIPE - H class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

LR23320483SF (pdf)

PIPE - A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

LR21282447SF (pdf)

Assessment

Letter cables pipes (pdf)

DNV

A class fire

TAF00000TJ (pdf)

Gas tightness (catastrophic), Water tightness (catastrophic)

TAE00001U2 (pdf)

H class fire

TAF00000KE (pdf)

RGS/RGB - FRP Composite fire resistance

TAF000009S (pdf)

Bureau Veritas

A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

27842 B0 BV (pdf)

Letter

Letter (pdf)

MED

A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

RGS EU DECLARATION OF CONFORMITY LR22218988MB (pdf)

LR22218988MB-02 (pdf)

MCGA-UK Wheelmark

A class fire, Gas tightness (catastrophic), Water tightness (catastrophic)

LR22433347UKMB (pdf)

IECEX & ATEX

RGS, RGG

ATEX Declaration Of Conformity (pdf)

EX Certificate Of Conformity U (pdf)

EX Certificate Of Conformity X (pdf)

CSA

Hazloc - CSA C22.2

COFC 80208206 (pdf)

For more information visit Certificates

System components

MCT Ex - Marine & Offshore | RGSF Ex

For holes larger than the frame

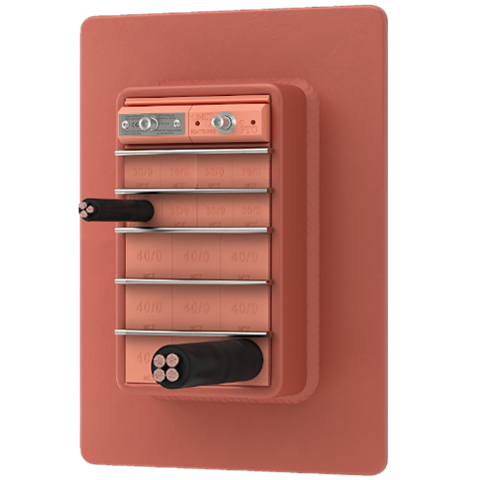

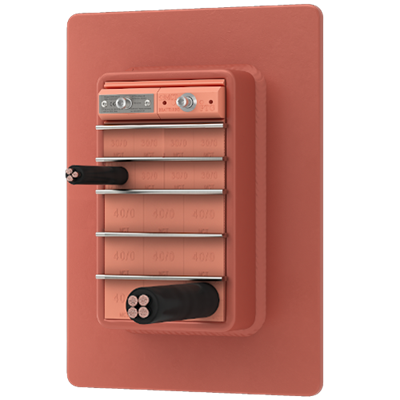

Ex rated transit welded into a hole which is slightly larger than the frame.

See specs and variations

MCT Ex - Marine & Offshore | RGSFBO Ex

For when cables are already in place

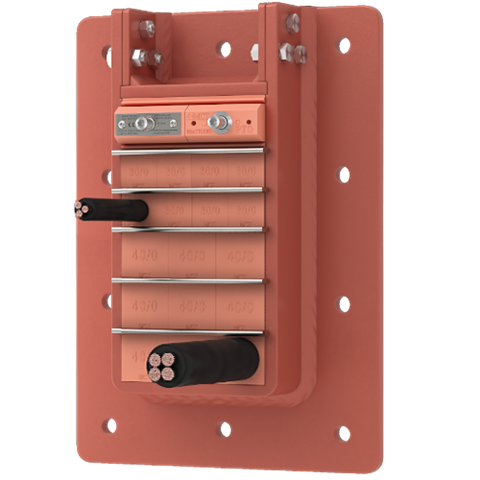

Ex rated transit for bolting and for installations where cables are already in place.

See specs and variations

MCT Ex - Marine & Offshore | RGSC Ex

For heavier loading

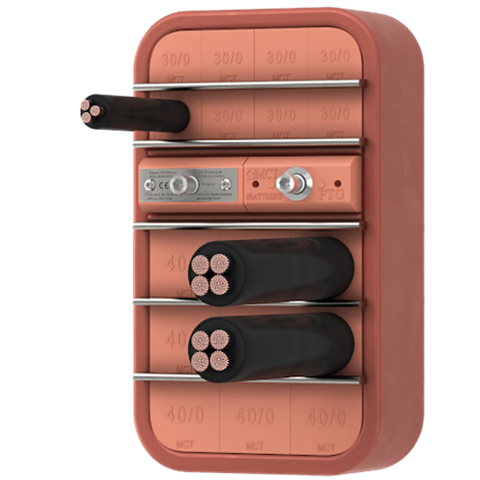

Ex rated transit welded into decks and bulkheads that are subjected to heavy loading.

See specs and variations

MCT Ex - Marine & Offshore | RGSk Ex

For installing at a distance

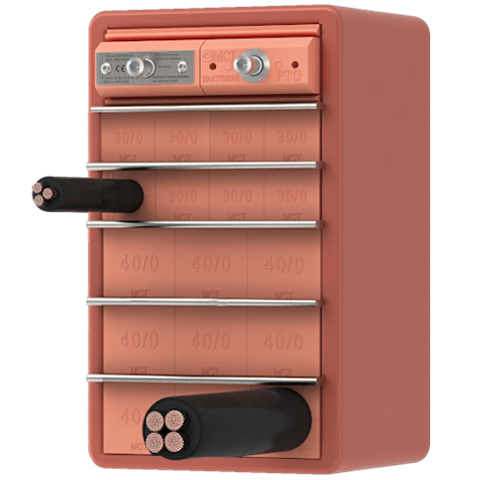

An extended Ex rated transit were pooling of water can take place.

See specs and variations

MCT Ex - Marine & Offshore | RGSbtb Ex

For twice the safety

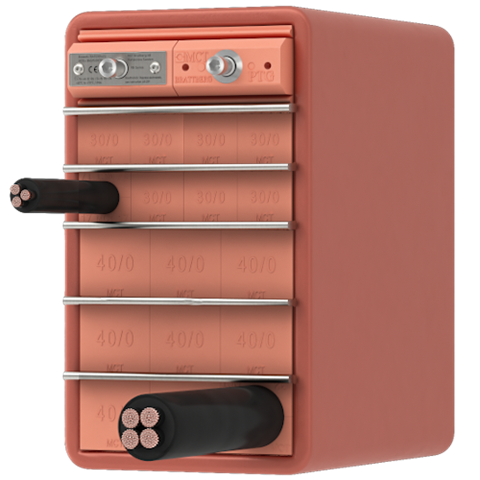

A double Ex rated transit which is packed from both sides, enabling on site pressure testing and twice the safety.

See specs and variations

Stayplate

For increased stability

To be placed between each row of blocks.

See specs and variations

STG Endpacking

For completing the seal

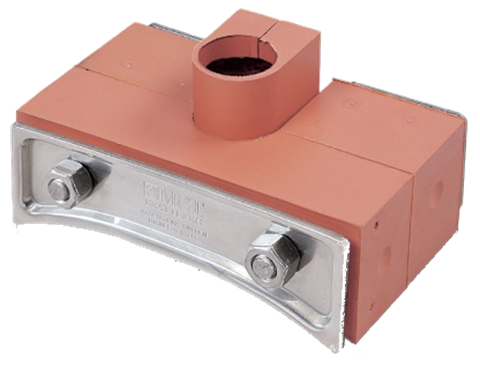

Installed between compression plate and the top of the frame.

See specs and variations

PTG Presswedge

For completing the seal

Can be installed anywhere in the frame.

See specs and variations

Standard Block

For a fast and safe installation

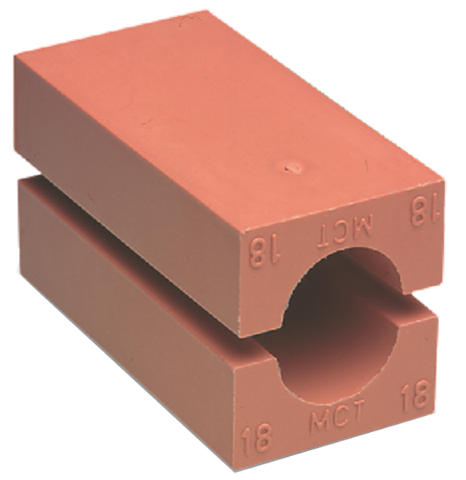

Designed to seal cables and pipes with diameters from 3.5 – 110 mm (0.14-4.33”). Other dimensions can be supplied to order.

See specs and variations

AddBlock

For varying cable dimensions

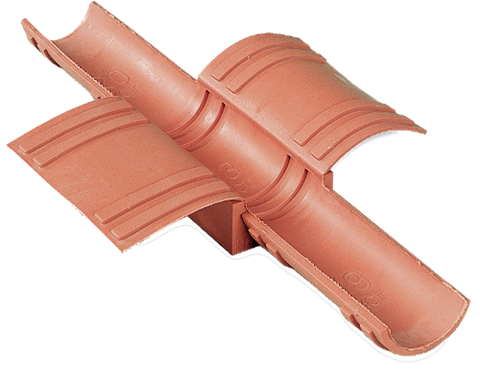

Available in eleven block sizes and 66 cable dimensions.

See specs and variations

Spare block

For the option of fitting new cables in the future

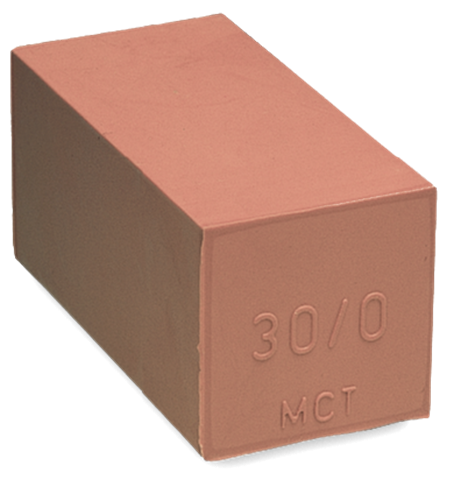

Unused space in the frame is filled with solid spare blocks.

See specs and variations

U-block

For converting block dimensions

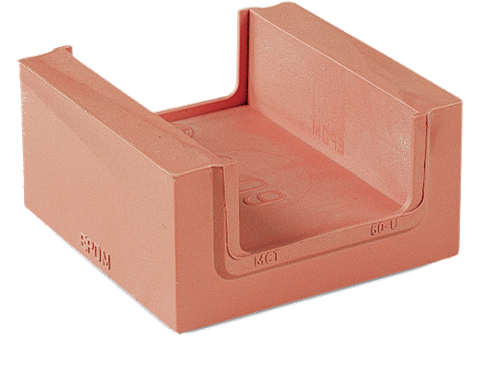

Used to enlarge the external dimensions of blocks to the next modular size.
