Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

PRESSURE-TIGHT INSTALLATION
All contact surfaces between the pipe and the RGP plug must be cleaned carefully prior to installation. Do not use any lubricant on these surfaces. All blocks must be lubricated carefully with MCT Brattberg lubricant. The penetration must not be subjected to pressure for at least 48 hours after installation. This is to allow the pressure to equalise throughout the penetration. It will take more time for the pressure to equalise at temperatures below 20°C.
Note: If the installation is subjected to pressure, all components must be replaced after removal and refitting.

Use bolts for this transit

This transit was designed for areas where welding is prohibited or welding induced stress levels making welding unacceptable. This transit is therefore to be fastened by bolts to ensure installation quality.

The RGP is available in 12 standard diameters 50, 70, 100, 125, 150, 200, 300 mm, 3", 4", 5", 6", 8" and is packed with MCT insert blocks. The hardware is available in galvanized or stainless steel (316L).

See specific dimensions, sizes and sleeves

• RGP Table

Ex and ATEX requirements are very strict, some Ex Insert blocks may not be approved with certain systems.

Standard Block Ex

Following standard blocks in the table are approved:

Spare Block Ex

Following Spare blocks in the table are approved:

AddBlock Ex

Following Addblocks in the table are approved:

General

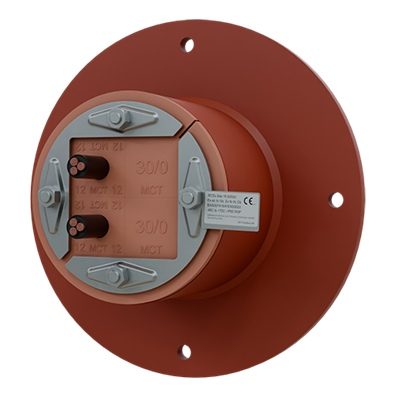

The system consists of a round rubber frame (RGP Ex) and rubber blocks. The RGP Ex system must be installed with a MCT Brattberg sleeve as a kit, and packed with rubber blocks suited for each cable and pipe dimension. The compression bolts are tightened to compress the rubber blocks against cables and pipes to establish a tight seal.

The marking of the equipment and protective system:
Group II Category 2GD Ex eb IIC Gb Ex tb IIIC Db Tamb (-40°C to+70°C)

Note: MCT Brattberg RGP Ex system must be installed with supplied sleeve.

Benefits of MCT Brattberg Ex systems

• Ex rated transit for hazardous environments
• Assists cable management
• Seals the penetration against the passage of fire, water, gas, sound and environmental hazards
• Can be combined with special EMC modules and for Grounding and Bounding
• Unlike other brands our system can be dismantled and re-used
• Cable dimension marked on block
• No adaptation of standard blocks needed
